Pretreatment / Washing
Multi-stage pretreatment systems for powder coating operations of all sizes. Immersion dip tank systems serve batch production where parts are loaded onto trolleys and moved through stages manually. Continuous spray wash lines integrate with automated conveyors for high-volume production. Stage counts run from 3 stages (basic cleaning and conversion) to 8+ stages for demanding environments including coastal, high-humidity, and high-UV applications, with additional rinsing, de-smut, and sealing steps. We offer nanotechnology, phosphating, and chrome-free conversion chemistry options, and deliver lines compliant with AAMA 2605, Qualicoat, and GSB certification standards where required. System selection depends on substrate (steel, aluminium, galvanized), part geometry, and target durability specification.
Products in Pretreatment / Washing

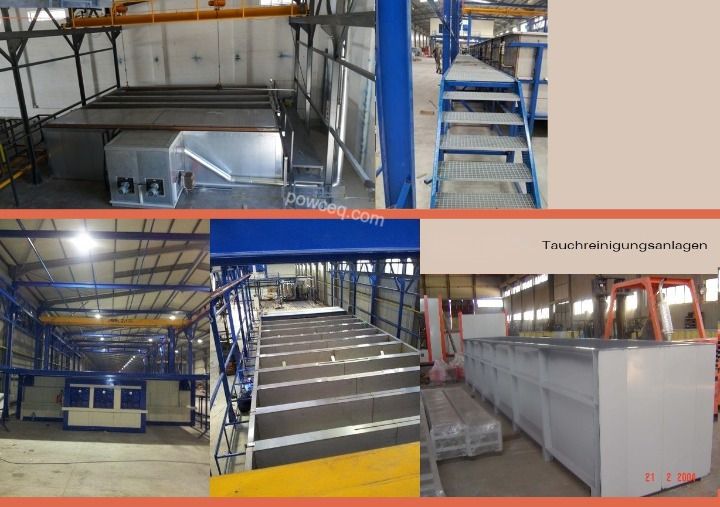

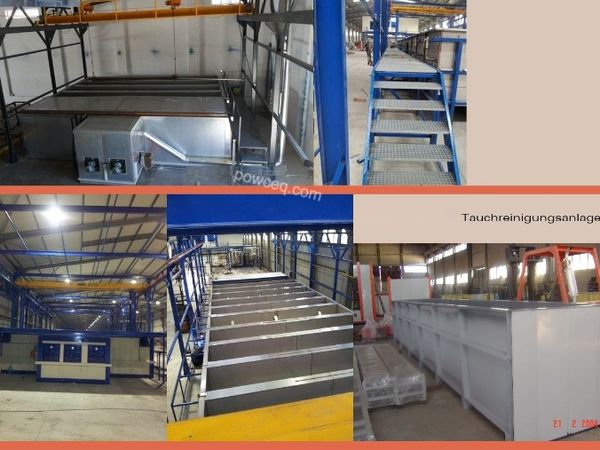

Dip Tank Pretreatment System
For batch operations: multi-stage immersion cleaning before coating
Type: Immersion / dip tankStages: 3-8+ configurableMaterials: Steel, aluminum, galvanized
View details
Spray Wash Pretreatment Line
For automated lines: continuous spray wash integrated with conveyor
Type: Continuous spray washStages: 5-8+ configurableIntegration: In-line with conveyor
View details P
Pre-Treatment Wash Station
Surface preparation wash system
Stages: 3-5 configurableMax Part Size: 1.2m x 1.2m x 1.8mWater Temp: Up to 71°C
View details Compare Pretreatment / Washing
Side-by-side specifications to help you choose the right equipment
| Specification | Dip Tank Pretreatment System | Spray Wash Pretreatment Line | Pre-Treatment Wash Station |
|---|---|---|---|
| Type | Immersion / dip tank | Continuous spray wash | · |
| Stages | 3-8+ configurable | 5-8+ configurable | 3-5 configurable |
| Materials | Steel, aluminum, galvanized | · | · |
| Chemistry | Phosphate / nano / chrome-free | Nano / zirconium / chrome | · |
| Integration | · | In-line with conveyor | · |
| Max Part Size | · | · | 1.2m x 1.2m x 1.8m |
| Water Temp | · | · | Up to 71°C |
| Power | · | · | 220V / 3 Phase |
| Best For | For batch operations: multi-stage immersion cleaning before coating | For automated lines: continuous spray wash integrated with conveyor | Surface preparation wash system |
| View details | View details | View details |
Not Sure Which Pretreatment / Washing You Need?
Tell us what you are coating: part type, dimensions, production volume, and how often you change colors. Our engineering team will recommend the right configuration and provide a quote within 1 business day.
Dip Tank Pretreatment System: For batch operations: multi-stage immersion cleaning before coating
Spray Wash Pretreatment Line: For automated lines: continuous spray wash integrated with conveyor
Pre-Treatment Wash Station: Surface preparation wash system
