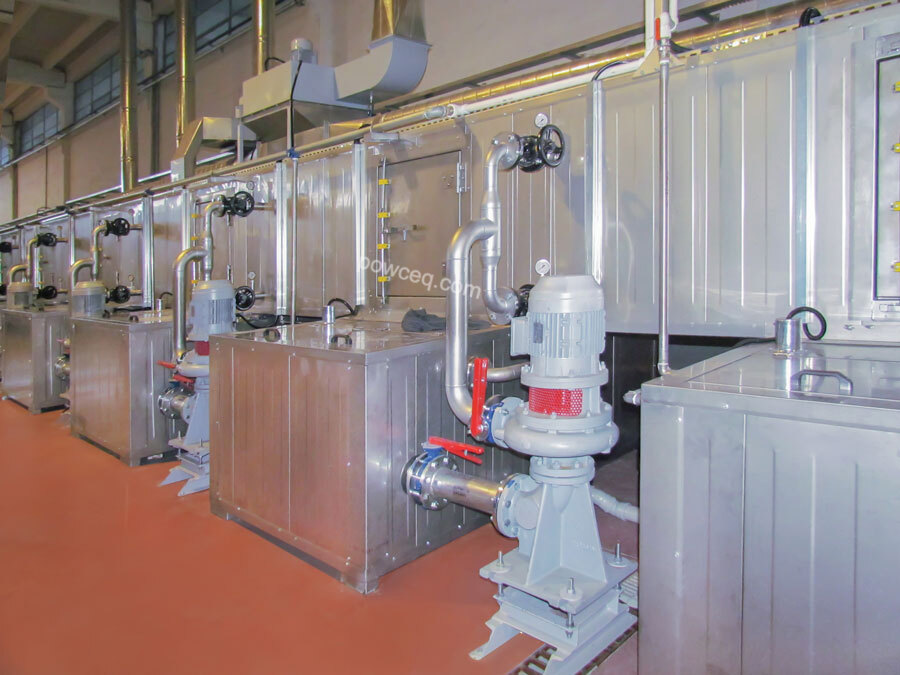

Spray Wash Pretreatment Line

The Spray Wash Pretreatment Line is a continuous spray pretreatment system that cleans and converts parts as they travel through it on a conveyor, preparing the surface for powder coating at line speed. Instead of immersing parts in tanks, it uses banks of spray nozzles that flood each part with chemistry and rinse water as it passes through each stage. Pretreatment is what makes coating durable, giving the powder a clean, converted surface to bond to and resisting corrosion under the film, and the spray wash line delivers that as a continuous, in-line process for steady high-volume production.

Continuous spray process

The line is configurable from 5 to 8 or more stages, with spray nozzles cleaning parts as they move through each one. A typical sequence flows through degrease, rinse, conversion, and rinse stages, with the exact count set by your parts and quality targets. Because the process is continuous, parts enter at one end and exit prepared at the other without stopping, which is the core advantage over batch immersion: there is no load-and-wait cycle, and surface prep keeps pace with the conveyor. You match stage count to the soils you are removing and the conversion performance you need.

Conveyor integration

The spray wash line is designed to run in-line with your conveyor, so pretreatment, coating, and curing form one continuous flow at a single line speed. Parts hang on the conveyor through the spray tunnel, then carry straight on to drying, the powder booth, and the oven without being unloaded and reloaded. That integration is the reason to choose spray wash for volume: it removes the manual handling between pretreatment and coating and keeps the whole line moving at a consistent rate, which is what continuous production depends on.

Chemistry options

The line supports nano, zirconium, and chrome conversion chemistries, so you can specify the surface treatment to suit your substrate and your durability and environmental requirements. Nano and zirconium conversion coatings are well matched to spray application and to lines moving toward lower environmental load, while chrome remains available where a specification calls for it. Because the chemistry is selectable, the same spray line can be set up for a modern thin-film conversion or a chrome process depending on the parts and the standard you are coating to. For architectural aluminium, our guide on pretreatment sizing for architectural aluminium covers how to align chemistry and stage count with the durability class you are targeting.

Efficiency: heating, water, and chemical use

The line is built around energy-efficient heating, with the spray approach using minimal chemical and water compared with filling and maintaining large immersion tanks. Spray application puts chemistry and rinse water onto the part where it is needed and recirculates it, so consumption per part stays low even at high throughput. For a high-volume operation, the running cost of pretreatment matters as much as the capital cost, and the combination of efficient heating and low chemical and water use keeps the cost per part down across long production runs.

Where it fits in your line

The Spray Wash Pretreatment Line sits at the head of a continuous coating line, integrated with the conveyor ahead of the drying stage, the powder booth and spray guns, and the curing oven. Parts move through the spray tunnel and carry straight on to coating and cure at line speed, with no break in the flow. It is the right choice for steady high-volume production of parts that suit spray coverage, where continuous throughput and low running cost matter most. For complex geometry, mixed batches, or parts with deep recesses that spray cannot reach, an immersion dip tank system is the alternative; for volume and flow, the spray wash line is the stronger fit.
