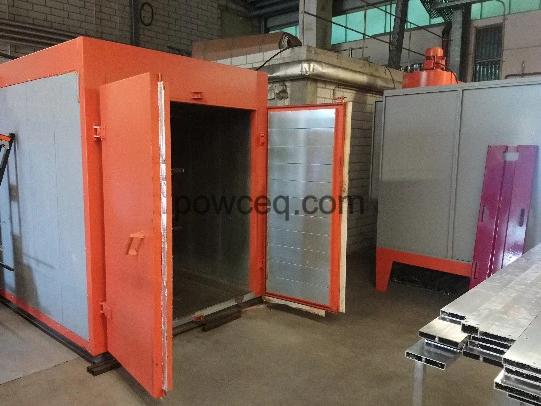

Curing Oven

The PowCEQ powder coating curing oven is a high-temperature batch oven built to fully cross-link applied powder after spray, giving job shops and production cells a reliable cure stage without committing to a continuous conveyor. It is sized for operations that run a changing mix of part sizes day to day: brackets and small fabrications one hour, larger weldments or framed assemblies the next. The 6 x 6 x 8 ft chamber, 232C (450F) ceiling, and choice of gas or electric heat make it a practical core for any shop building out a manual or semi-automated coating line, where flexibility across batch sizes matters more than fixed throughput per minute.

Chamber size and temperature range

The internal chamber measures 6 x 6 x 8 ft (1.8 x 1.8 x 2.4 m), enough volume to hang full panels, framed assemblies, or a loaded rack of smaller parts in a single load. Maximum operating temperature is 450F (232C), which covers the cure schedules of standard thermoset powders, including most polyester, epoxy-polyester hybrid, and TGIC chemistries that call for 10 to 20 minutes at metal temperature in the 180C to 200C band. The headroom above typical setpoints gives you margin for heavier parts that take longer to reach metal temperature, and for the occasional high-bake powder. Sizing the chamber to your real part envelope matters: our guide on industrial powder coating oven sizing covers how to match internal volume and loading to your part mix and target cycle count.

Batch curing process and workflow

This is a batch oven, so parts are loaded, the door is closed, and the full chamber holds a stable setpoint for the duration of the cure. That model suits shops where the part mix changes load to load and a conveyor would force compromises on line speed and hang spacing. You cure a rack of small parts and a single large fabrication on the same equipment without retooling. Cure time is governed by metal temperature, not air temperature, so heavier or thicker sections simply stay in longer rather than requiring a separate setup. With a heat-up time of around 30 minutes from cold, the oven is ready for the first load early in the shift and recovers quickly between batches once it is at temperature.

Heat source, controls, and operation

Heat source is specified as gas or electric, so you can match the oven to local utility costs and infrastructure. Gas firing usually wins on operating cost per cure in higher-volume shops with reasonable gas rates, while electric simplifies installation where a gas connection or flue routing is impractical and keeps the chamber free of combustion byproducts. Our guide on gas versus electric curing ovens lays out the real operating cost at scale so you can run the numbers against your own throughput and energy prices. Operation is straightforward: set the target temperature, let the chamber stabilize, load, and time the cure from when parts reach metal temperature. Recovery after each door opening is quick once the oven is up to setpoint.

Fit within a coating line

The oven is built to integrate with the rest of a manual or semi-automated line rather than stand alone. Its footprint and 6 x 6 x 8 ft chamber pair naturally with a matching spray booth so part envelopes stay consistent from application to cure, and the batch model means you are not locked into a fixed conveyor speed across the two stages. Loading is rack-based or cart-based depending on your handling, and the chamber accepts parts hung from standard hooks or set on shelf carts. Because cure is decoupled from a continuous line, you can scale application capacity independently and add a second booth or more spray stations without re-engineering the cure stage.

Where it fits in your line

In a full PowCEQ coating line, this curing oven sits at the final stage, downstream of everything that prepares and applies the powder. Upstream, a pretreatment system cleans and conditions the substrate, parts move into a coating booth where spray guns fed by a powder feed center apply the film, and an overhead conveyor can carry work from booth to oven on higher-volume layouts. The curing oven then cross-links the applied powder into its finished, durable coat. Because it runs in batch mode, it pairs equally well with a manual single-booth shop or a conveyorized cell, letting you build the line in stages and add a booth, guns, or pretreatment capacity as demand grows without replacing the cure stage.
