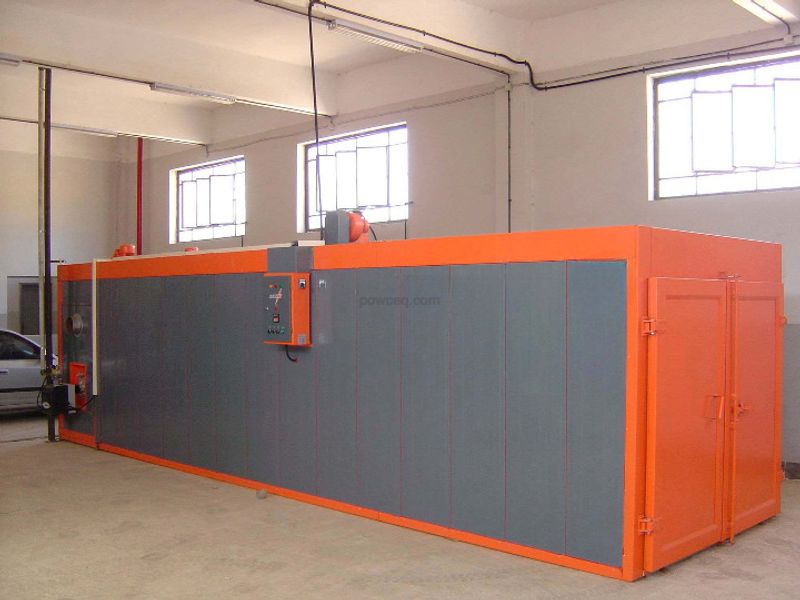

Batch Oven EL60

The Batch Oven EL60 is a large-format production oven built for long parts that no batch cabinet can take. With a 1.5 x 1.8 x 6.0 m working area, a full 6 m of length, it cures structural steel, long profiles, large enclosures, and extended fabrications in one pass. It is the oven for structural fabricators, profile and extrusion finishers, and shops coating long architectural or industrial components that need a single uniform cure end to end.

Chamber size and capacity

Six metres of length is what sets the EL60 apart. It accepts long structural sections, extended profiles, and large enclosures laid or hung along the chamber, and it can rack several long parts together for an efficient batch. The 1.5 x 1.8 m cross-section gives the height and width to handle bulky enclosures alongside the long runs. Loading is by cart or overhead rail: heavy structural parts can be built up on a trolley and rolled in, or long profiles hung from an overhead track and run in along the length. The key with a chamber this long is even spacing so circulating air reaches every part along the full 6 m.

Heating and running cost

The EL60 is electric and moves a high volume of air, with an air output of 17,000 m3/h (a 60,000 BTU/h equivalent label) to drive heat through the long chamber. Electric heating keeps the installation free of flue and gas-supply work and gives precise control over a large internal volume. At the throughput a 6 m oven implies, running cost becomes a real line item, and gas heating can reduce the cost per cured part for facilities running long shifts. Our guide on gas versus electric curing ovens sets out where that economic crossover lies, so a high-volume operation can weigh staying electric against a gas-fired oven of similar size.

Cure profile and temperature uniformity

Maximum temperature is 205 C (400 F), covering the standard cure window. Over a 6 m chamber, uniformity is the central engineering challenge: a structural beam must cure at the far end exactly as it does at the door. The EL60 uses high air circulation to achieve wall-to-wall uniformity along the full length, so the whole part reaches and holds its target metal temperature for the required dwell. Heavy structural sections carry significant mass and need adequate soak time to come up to temperature throughout, and the strong airflow helps bring even thick parts to a consistent temperature before the dwell is counted.

Construction and controls

The EL60 is insulated to retain heat across its large volume and is controlled by a PLC digital system. PLC control is well suited to production runs of long parts: stored programs, a precise setpoint, and repeatable cycles keep results consistent across operators and shifts. For structural and architectural contracts where documentation matters, repeatable, recorded cure cycles support quality and traceability. The control holds the chamber at a steady temperature while the high-volume air system keeps that temperature even along the length.

Where it fits in your line

The EL60 anchors the cure stage of a large-part finishing line. It pairs with a coating booth sized for long sections and with a pretreatment line capable of cleaning structural steel and long profiles before coating. A powder feed center supports the higher spray volume that large surface areas demand, keeping the booth fed so the line runs without interruption. With cart or overhead rail loading it integrates into a floor or tracked layout, making it the cure point for fabricators and finishers whose work is defined by length rather than batch count.
