Automated Powder Coating Line for Aluminium Profiles
High-output, low-maintenance systems designed to maximize aluminium profile production with minimal downtime. Built for efficient industrial performance — our lines improve space usage, reduce handling effort, and ensure consistent coating quality.
Why Buyers Choose This Line
Reliable Production
Stable industrial output with minimal unplanned downtime
Low Maintenance
Fewer service interruptions — designed for continuous operation
High Output
More profiles per shift — Power & Free conveyor at up to 5 m/min
Strong ROI
Lower per-part cost, reduced labor, and better long-term profitability
Optimized for Space-Saving and High Production
Compact Power & Free conveyor layout designed for facilities with limited floor space. The line achieves high throughput in a smaller building footprint — running at up to 5 m/min with automatic loading, spraying, and unloading.
Reliable Automation for Daily Production

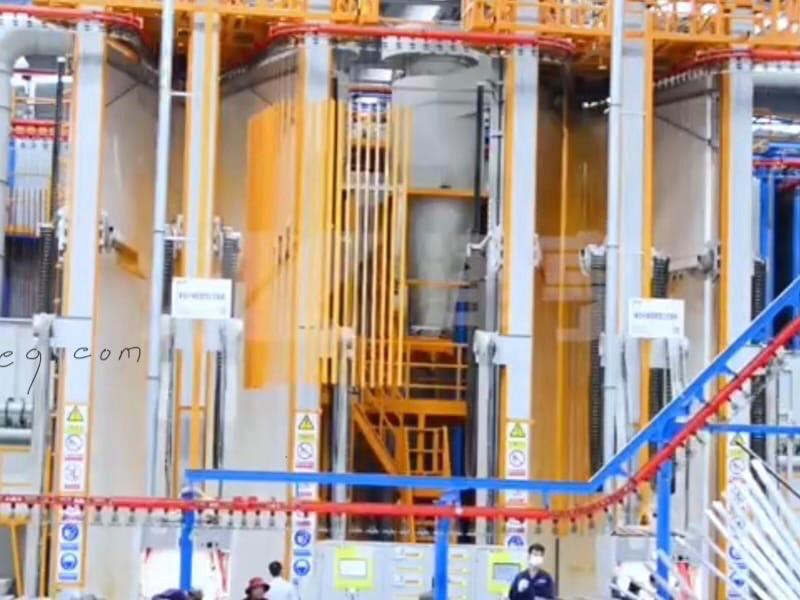

Vertical coating line for aluminium profile manufacturer in the UAE. 35-meter layout with 5-stage nano pretreatment, automatic plastic booth with cyclone recovery, and Power & Free conveyor. Full turnkey delivery with installation support and operator training.
Complete Aluminium Powder Coating System
Every component is designed to work together as a continuous production line — from surface preparation through to final cure. The system handles the complete coating process with minimal manual intervention.
- Pre-treatment system (5 to 8+ stages)
- Drying oven
- Automatic spray booth with cyclone recovery
- Powder center with automatic feeding
- Curing oven with uniform temperature control
- 3D detection system for adaptive spray
3D Automatic Coating Technology
The 3D detection system scans each profile as it enters the booth, mapping its exact geometry. Spray guns then adjust their parameters automatically — adapting to every shape without manual reprogramming.
Automatic Shape Detection
3D scanner maps each profile as it enters the booth — the system knows the exact geometry before spraying begins
Adaptive Spray Guns
Gun parameters (kV, output, pattern) adjust automatically per profile zone — corners get different treatment than flat surfaces
Uniform Coating Thickness
Consistent film build across the entire profile length, including recesses and complex cross-sections
Higher Production Speed
Automatic detection and adjustment means no manual gun repositioning between different profile shapes
Touchscreen Control
Operators monitor and adjust parameters from a central HMI touchscreen — recipe storage for repeatable results across shifts
Considering an aluminium profile coating line?
Tell us your profile dimensions, production goals, and available space. We respond within 24 hours with a layout recommendation.
Key Advantages of Powder Coated Aluminium
Durability
Resistant to wear, corrosion, UV degradation, and weathering. Suitable for architectural and industrial applications.
Design Freedom
Wide range of colors, textures, and finishes — including metallic, matte, gloss, and wood-grain effects.
Eco-Friendly
No VOC emissions, no solvents. Overspray is recovered and reused — up to 98% powder utilization.
Cost Efficiency
Lower maintenance costs, reduced material waste, and fewer rejects compared to liquid coating.
Pretreatment for Aluminium Profiles
Surface preparation is critical for adhesion and long-term corrosion resistance on aluminium. The pretreatment stage removes contaminants, etches the natural oxide layer, and applies a conversion coating. Standard systems use 5 stages. For demanding environments — coastal, high-humidity, or high-UV — 6 to 8+ stage configurations add additional rinsing, de-smut, and specialized sealing options. Compliant with AAMA 2605, Qualicoat, and GSB standards. Chrome-free conversion options available for facilities transitioning away from traditional chromate chemistry.

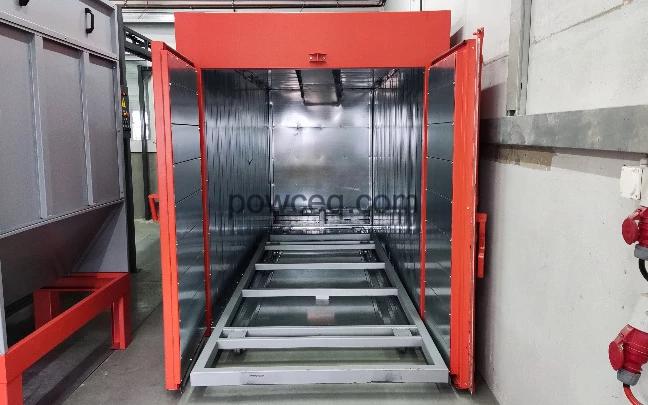

Drying & Curing Ovens
Uniform air distribution and precise temperature control ensure consistent curing across every profile. Insulated construction minimizes heat loss and operating cost.

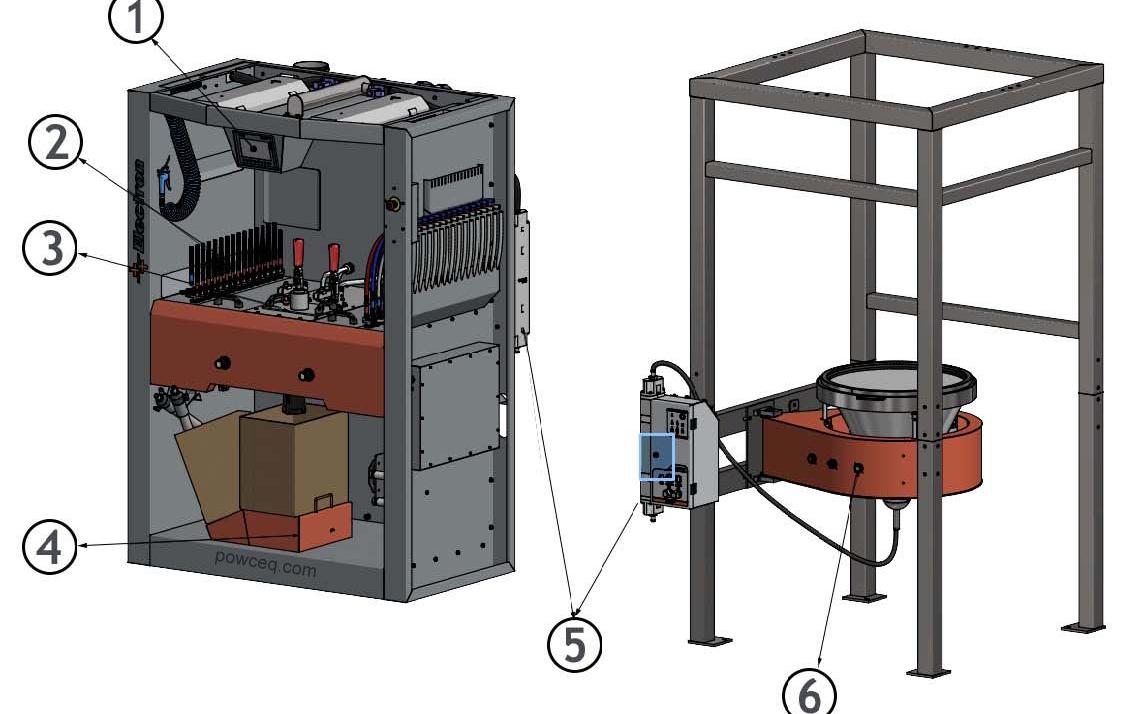

Powder Center
Automatic powder management with sieving, reclaim, and color change capabilities. PM1 for single-color, PM2 for multi-color, PM3 for fully automatic 5-minute changes.
Approche projet
Nous gérons les projets en tant qu'installations clé en main — un interlocuteur unique de la demande initiale jusqu'à la ligne de production en fonctionnement.
Partagez vos exigences
Indiquez-nous ce que vous revêtez — dimensions des pièces, matériau, débit cible et surface au sol disponible.
Nous concevons un plan d'implantation
Notre équipe d'ingénierie crée un plan du système et une recommandation d'équipement adaptés à votre installation.
Fourniture et livraison d'équipement
Get Your High-Performance Powder Coating Line
Tell us your profile dimensions, production goals, and available floor space. Our engineering team will recommend the right system configuration and respond with a layout proposal — typically within 24 hours.
